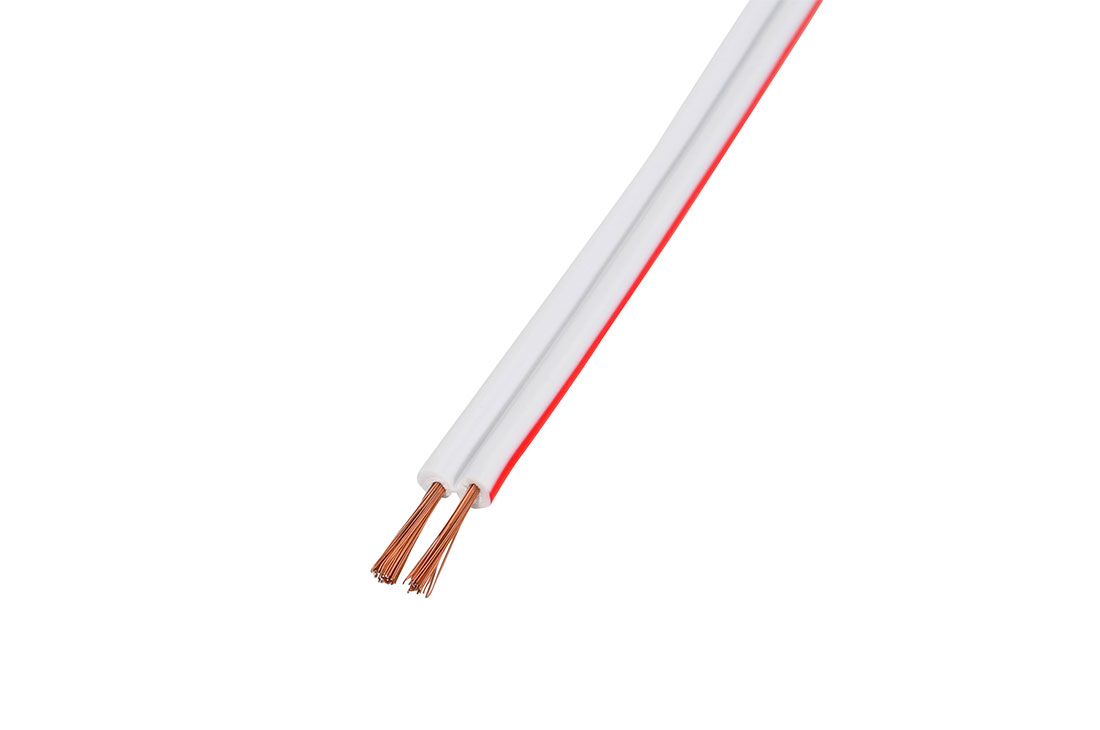

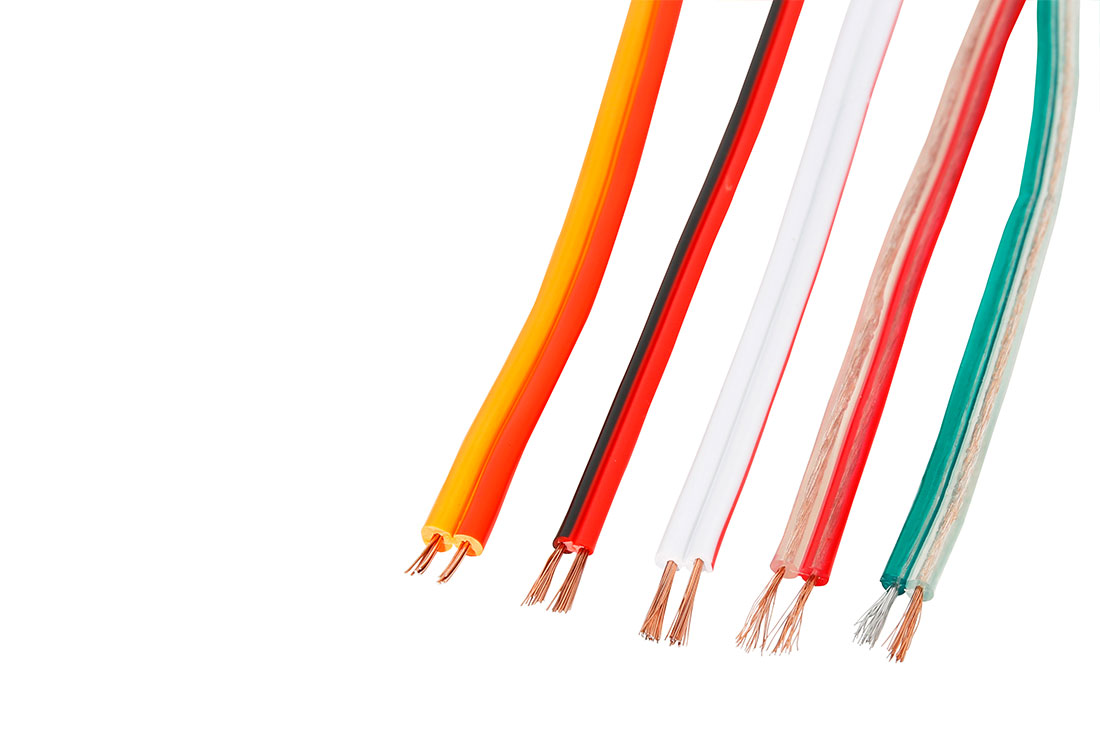

Product Details
Place of Origin : Foshan , China Brand Name : KEXUN，NEW KING or OEM
Model Number : RVB cable Number of Conductors : 8，25 or others
Type : Electrical cable Model : RVB
Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day
A) Packing lengths: 100m/roll, 200m/roll, 305m/roll
B) Inner packing: Plastic spool, paper drum, or wooden drum,
C) Outer packing: Carton box
D) Other packing available according to customer
Specifications
1. Transparent: PVC,
2. Conductor: Oxygen-free copper, Tinned copper, or CCA, CCS
3. Any guage, any color can be supplied
4. Standard thickness
5. Easy to strip and cut
6. Suitable for Audio Device, Speaker, electrical equipment, power and lighting system
| AWG | FEATURE SECTION(mm ²) | NO. OF CENTRAL CON DIA. CONDUCTORS(mm) | OUTER DIAMETER(mm) |
| 4 | 21 | 0.12×38×7×7 | 10 |
| 6 | 13 | 0.12×24×7×7 | 7.8 |
| 8 | 8.63 | 0.12×105×7 | 6.7 |
| 10 | 5.26 | 0.12×66×7 | 5.5 |
| 12 | 3.3 | 0.12×42×7 | 4.5 |
| 14 | 2 | 0.12×26×7 | 3.5 |
| 16 | 1.3 | 0.12×16×7 | 3.2 |
| 18 | 0.75 | 0.12×66 | 2.5 |
| 20 | 0.42 | 0.12×37 | 2 |
| 22 | 0.25 | 0.15×14 | 2 |
| 24 | 0.21 | 0.15×7 | 1.6 |
| 4 | 21 | 0.12×38×7×7×2C | 10.00×20.00 |
| 6 | 13 | 0.12×24×7×7×2C | 7.80×15.60 |
| 8 | 7.5 | 0.12×95×7×2C | 6.50×13.00 |
| 10 | 5 | 0.12×59×7×2C | 5.50×11.00 |
| 12 | 3 | 0.12×37×7×2C | 4.00×8.00 |
| 14 | 2.5 | 80×0.20×2C | 4.00×8.00 |
| 14 | 2 | 64×0.20×2C | 3.50×7.00 |
| 16 | 1.5 | 48×0.20×2C | 3.00×6.00 |
| 16 | 1 | 32×0.20×2C | 2.80×5.60 |
| 18 | 0.75 | 24×0.20×2C | 2.50×5.00 |
| 20 | 0.5 | 16×0.20×2C | 2.20×4.40 |
| 22 | 0.35 | 11×0.20×2C | 2.00×4.00 |
| 24 | 0.25 | 0.12×22×2C | 2.00×4.00 |
| 26 | 0.12 | 0.12×11×2C | 1.60×3.20 |

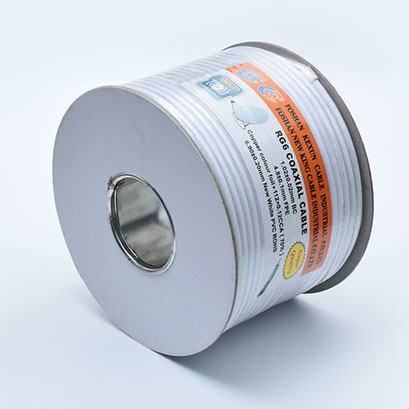

 Roll 1 |  Roll 2 |

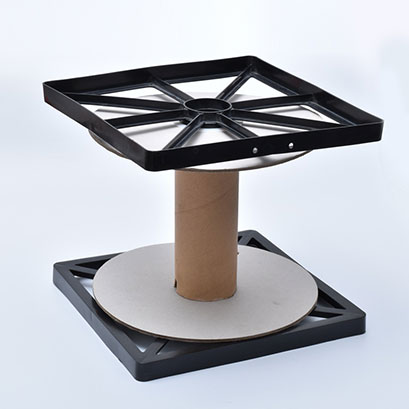

 Plastic Frame |  Paper Reel Packing |

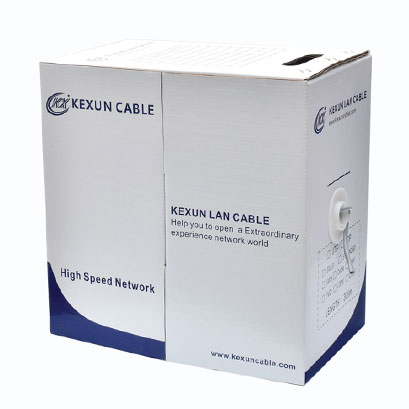

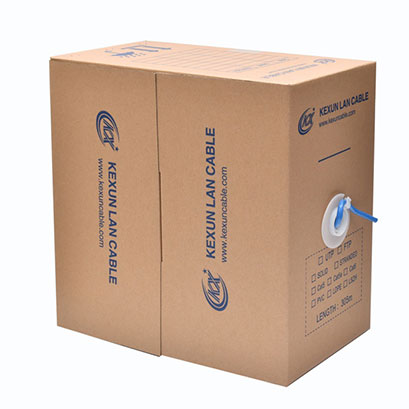

 Normal Pully Box |  Pully Box |
 Audio Device |  Electrical Equipment |  Lighting System |
Company Profile
 FOSHAN KEXUN CABLE INDUSTRIAL CO.,LTD FOSHAN NEW KING CABLE INDUSTRIAL CO.,LTD After 30 years development and improvement, our company has been grown from a 10 person small factory to a more than 200 person groups which has two cable factories and two raw material factories. Foshan Kexun Cable and New King cable are the two production factories which can produce different types of cables and wires such as coaxial cable RG series, Lan Cable Cat5e, Cat6,both UTP and FTP series, camera cable/CCTV cable, RVV cable as electricity usage . |

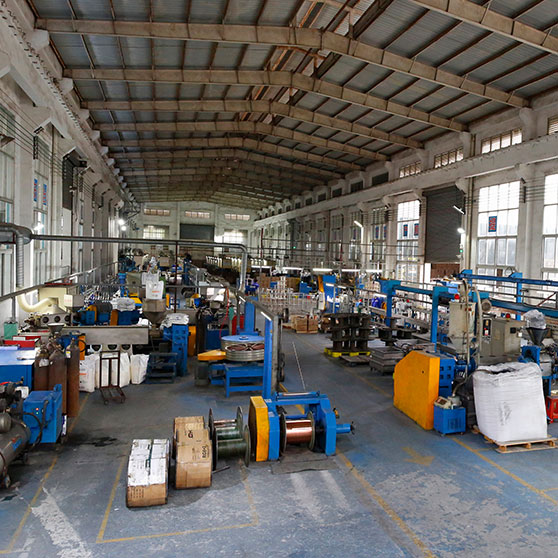

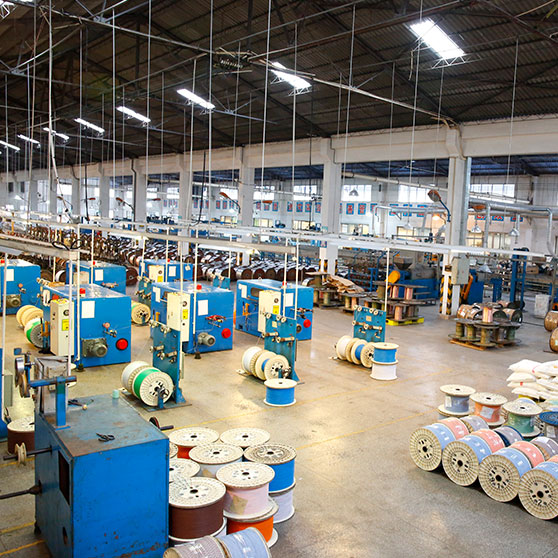

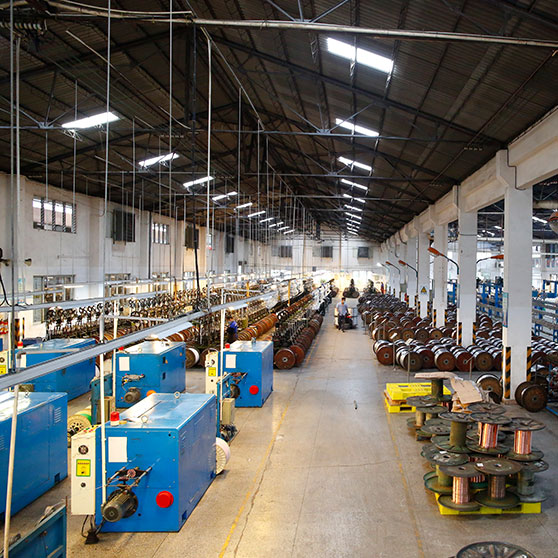

 In the Factory |  In the Factory |  In the Factory |

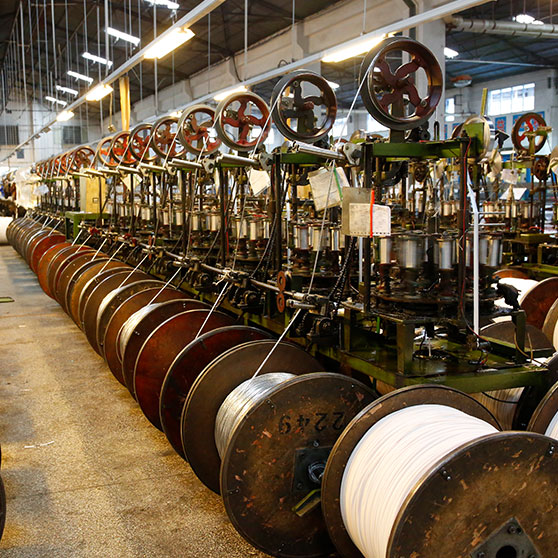

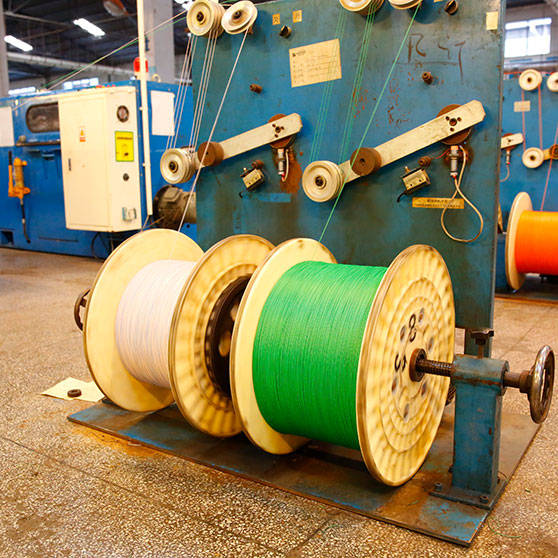

 Mechanical Equipment |  Mechanical Equipment |  Mechanical Equipment |
 Excellent Management Team With the benefit of 30 years production experience, we have got an excellent management team, experienced workers and a full set of mature production technologies for each procedures. For example, our average production waste has been stable below 0.9% yearly. |
 The Company Meeting |  The Company Meeting |  The Work Environment |

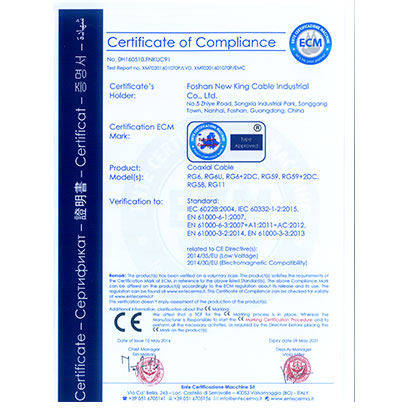

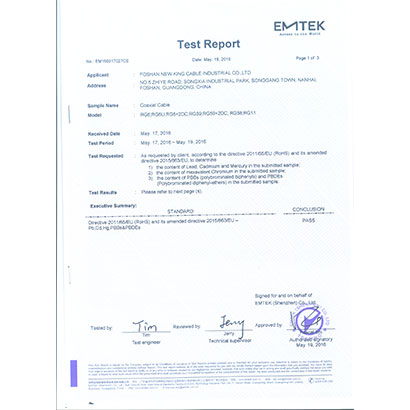

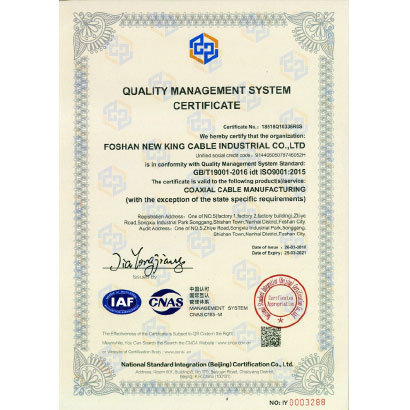

 ISO |  CE Certificate |  CE Foshan NK |  CE-Coaxial Cable-EMC |

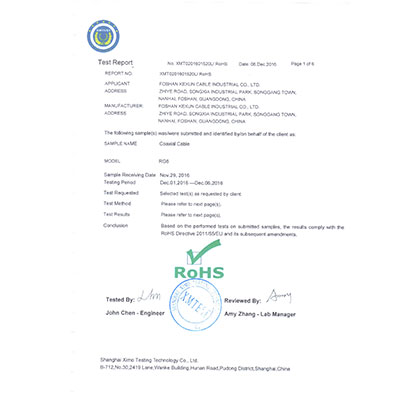

 NK CPR CABLE ISO 9001 |  ROHS Certificate |  ROHS Foshan NK |  CPR |
Dubai Exhibition, March 2019
 Talking to customers |  Business Negotiations |  Business Negotiations |
 October 2019 Canton Fair |  Photo with Customer |  Business Negotiations |
